| FANCOIL DE AGUA CON ENVOLVENTE |
FX 130 |
FX 230 |
FX 330 |
FX 430 |
FX 530 |
FX 630 |
FX 730 |
FX 830 |
FX 930 |
FX 1030 |
FX 930P |
FX1030P |
FX1130P |
FX1230P |
| CAPACIDAD |
FRÍO TOTAL |
kW |
1,5 |
2,0 |
2,53 |
3,0 |
3,75 |
4,25 |
5,52 |
6,42 |
7,53 |
9,0 |
8,14 |
9,82 |
9,6 |
10,7 |
| Frig/h |
1.290 |
1.720 |
2.176 |
2.597 |
3.225 |
3.655 |
4.747 |
5.521 |
6.476 |
7.757 |
7.000 |
8.445 |
8.256 |
9.200 |
| FRÍO SENSIBLE |
kW |
1,29 |
1,62 |
2,07 |
2,31 |
2,87 |
3,23 |
4,33 |
4,8 |
5,67 |
6,62 |
6,2 |
7,3 |
7,64 |
8,36 |
| kcal/h |
1.110 |
1.393 |
1.780 |
1.987 |
2.468 |
2.778 |
3.724 |
4.128 |
4.876 |
5.693 |
5.332 |
6.278 |
6.570 |
7.190 |
| CALOR |
kW |
3,74 |
4,91 |
5,98 |
6,7 |
8,16 |
9,44 |
12,0 |
13,3 |
15,5 |
18,1 |
16,8 |
19,79 |
21,1 |
23,2 |
| kcal/h |
3.216 |
4.223 |
5.143 |
5.770 |
7.018 |
8.118 |
10.320 |
11.438 |
13.330 |
15.566 |
14.448 |
17.019 |
18.146 |
19.952 |
| ALIMENTACIÓN |
V/F/Hz |
220 / 1 / 50 |
| CAUDAL DE AIRE (0 Pa) |
m3/h |
370 |
400 |
500 |
550 |
670 |
720 |
1.000 |
1.050 |
1.280 |
1.310 |
1.450 |
1.500 |
1.910 |
1.940 |
| NIVEL SONORO |
dB(A) |
38/31/24 |
38/31/25 |
44/38/30 |
45/38/31 |
37/33/26 |
37/34/27 |
43/41/34 |
45/41/35 |
48/46/39 |
49/46/40 |
51/48/43 |
52/49/52 |
51/48/45 |
51/48/49 |
| Nº MOTORES / CONSUMO MOTOR |
Nº/W |
1/55 |
1/55 |
1/85 |
1/85 |
2/75 |
2/75 |
2/145 |
2/145 |
2/175 |
2/175 |
2/225 |
2/225 |
3/285 |
3/285 |
| CAUDAL DE AGUA (FRÍO) |
l/h |
258 |
344 |
436 |
520 |
645 |
731 |
950 |
1.150 |
1.296 |
1.552 |
1.401 |
1.690 |
1.652 |
1.843 |
| PÉRDIDA DE CARGA (FRÍO) |
m.c.a. |
1,3 |
1,6 |
1,8 |
2,0 |
2,2 |
2,4 |
2,4 |
2,7 |
2,8 |
2,9 |
3,3 |
3,4 |
3,1 |
3,3 |

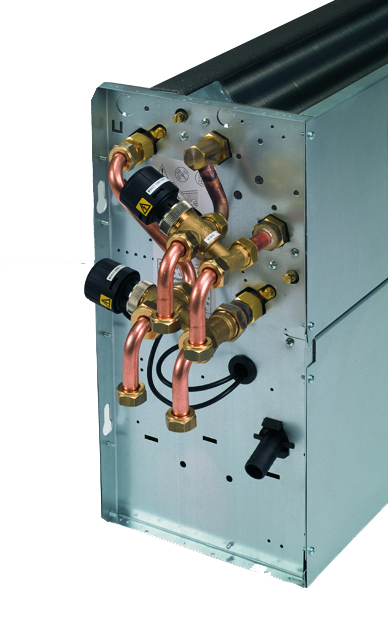

| CONEXIONES HIDRÁULICAS |
mm(pulg.) |
TUBO DE COBRE 19,05 (1/2") CON ROSCA HEMBRA |
|

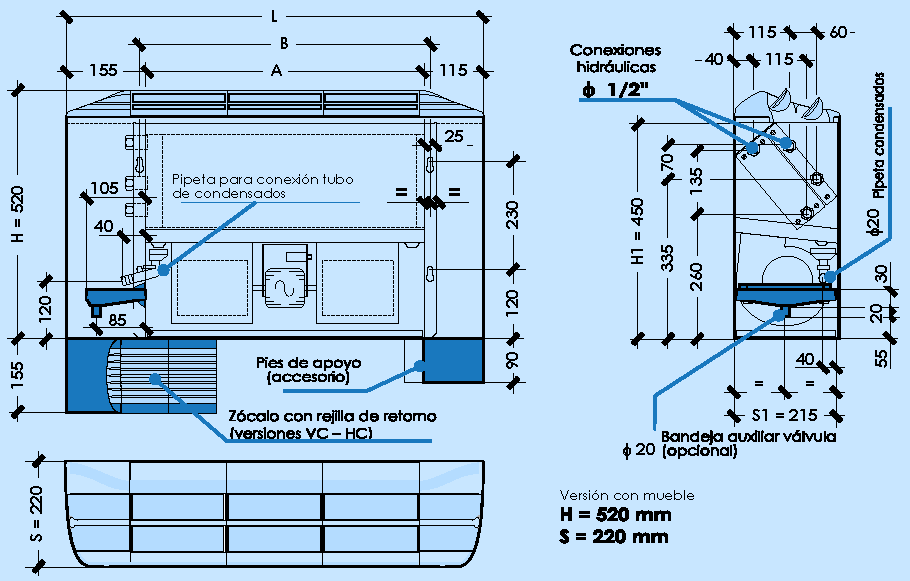

ALTO H
DIMENSIONES (FX-VA) ANCHO L
FONDO S
|
mm |
520 |
| mm |
670 |
870 |
1.070 |
1.270 |
1.470 |
1.470 |
1.670 |
| mm |
220 |
| PESO |
kg |
14 |
14 |
14 |
17 |
23 |
24 |
26 |
28 |
30 |
32 |
31 |
34 |
34 |
38 |
Todos los datos están sujetos a cambios sin previo aviso.
